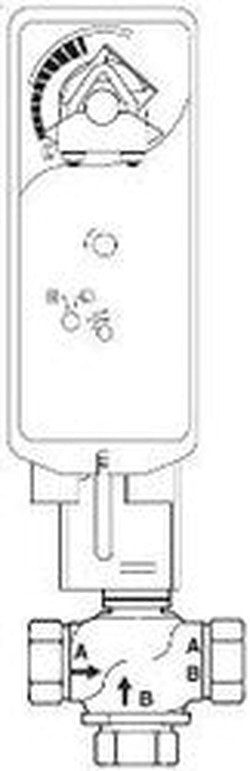

Schneider Electric VS-7313-546-4-08 Valve Actuator Assembly

Product Description

Schneider Electric VS-7313-546-4-08 is a high-performance valve actuator assembly. This assembly includes a one-inch body size and is configured as a three-way mixing globe valve. It has a robust construction with an NPT connection, suitable for various heating and cooling applications.

• Body Size: 1 inch
• Flow Coefficient: 14 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

The actuator is designed for reliable operation and efficient control in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Actuator Type: Electric
• Control Signal: Proportional
• Close-Off Pressure: 180 PSI
• Torque: 60 in-lb
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Temperature for Operation: -30 to 60 °C
• Ambient Temperature for Storage: -40 to 71 °C
• Relative Humidity: 5 to 95 % non-condensing
• Electrical Insulation Class: Class II
• Material: Die cast aluminum housing
