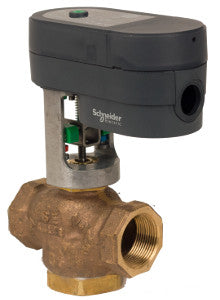

Schneider Electric VS-7313-112-4-08 Valve Actuator Assembly 1 in 3W Mix NPT

Product Description

The Schneider Electric VS-7313-112-4-08 is a valve actuator assembly designed for effective fluid control. This product features a one inch body size with three-way mixing capabilities. It utilizes a globe design and comes with a straightway body pattern and NPT connection.

• Control Signal: Modulating with a range of 0 to 10 VDC
• Close-Off Pressure: 67 PSI
• Actuator Type: Electric with linear motion

Product Highlights

This valve assembly includes a feedback and LED status indicator for operational clarity. It is rated for ambient temperatures from -5 to 55 degrees Celsius and offers a robust non-spring return feature for loss of power situations.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Material: Bronze
• Flow Coefficient: 14 cv
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Mechanical Movement: Linear
• Ambient Air Temperature for Operation: -5 to 55 °C
• Stroke Length: 16.5 mm
• Relative Humidity: 5-95 % non-condensing
• IP Degree of Protection: IP11
