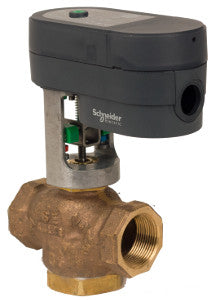

Schneider Electric VS-7313-112-4-06 Globe Valve Actuator Assembly

Product Description

Schneider Electric VS-7313-112-4-06 is a globe valve actuator assembly designed for precise control in various applications. This valve assembly features a three-way mixing configuration and is suitable for HVAC and plumbing systems. It ensures reliable flow management with a close-off pressure of one hundred thirty-five PSI and a maximum flow coefficient of seven point five cv.

• Body Size: three-quarter inches
• Body Material: bronze
• Actuator Type: Electric

Product Highlights

The Schneider Electric VS-7313-112-4-06 globe valve actuator offers automatic reset control and modulating capabilities. It features a linear movement for accurate flow regulation and has a feedback and LED status indicator for easy monitoring.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Model: MGF350V-24MP
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
• Close-Off Pressure: 135 PSI
• Operating Temperature: -7 to 138 °C
• Relative Humidity: 5 to 95 % non-condensing
• Stroke Length: sixteen point five mm
• Flow Coefficient: 7.5 cv
