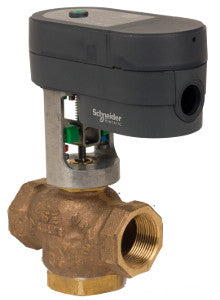

Schneider Electric VS-7313-112-4-04 Valve Actuator Assembly 24 V AC

Product Description

The Schneider Electric VS-7313-112-4-04 is a valve actuator assembly designed for efficient control in HVAC systems. This product features a globe valve with a three-way mixing configuration, ideal for precise temperature regulation.

• Body size: one-half inch
• Type: electric actuator with modulating control
• Flow coefficient: 4.4 cv

Product Highlights

This actuator allows for automatic operation in demanding environments and enhances system reliability. It is suitable for a variety of industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: bronze
• Power Input Voltage: 24 VAC
• Actuator Type: electric, non-spring return
• Close-Off Pressure: 219 PSI
• Operating Fluid Temperature: minus seven to one hundred thirty-eight degrees Celsius
• Ambient Air Temperature for Operation: minus five to fifty-five degrees Celsius
• Flow Coefficient: 4.4 cv
• Stroke Length: sixteen point five mm
• Control Signal Range: zero to ten VDC, two to ten VDC, four to twenty mA DC
• Protection Rating: NEMA 2
• Mechanical Movement: linear
• Feedback Features: LED status indicator
