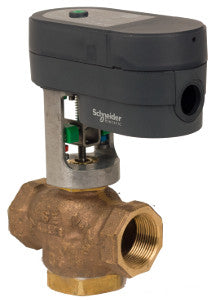

Schneider Electric VS-7313-110-4-09 Globe Valve Assembly 24 VAC

Product Description

Schneider Electric VS-7313-110-4-09 is a globe valve assembly designed for effective fluid control. This valve features a one and one-quarter inch body size and a three-way mixing configuration. It operates with an electric actuator and is suitable for modulating applications in HVAC systems.

• Body Size: one and one-quarter inches
• Configuration: three-way mixing
• Actuator Type: electric

Product Highlights

This valve assembly ensures reliable performance with its robust design and precision control. The non-spring return actuator provides a stable position during power loss. It is ideal for managing temperature and flow in heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 20 cv
• Close-Off Pressure: 49 PSI
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Ambient Air Temperature for Operation: -5 to 55 °C
• Operating Fluid Temperature: -7 to 138 °C
• Relative Humidity: 5 to 95 % non-condensing
• Seating Seal Material: EPDM and metal to metal
• Mechanical Movement: Linear
