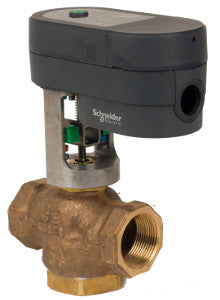

Schneider Electric VS-7313-110-4-04 Globe Valve Actuator Assembly

Product Description

Schneider Electric VS-7313-110-4-04 is a globe valve actuator assembly designed for effective fluid control. This unit operates as a 3-way mixing valve, making it suitable for diverse applications in HVAC systems.

• Body Size: 1/2 inch
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI

Product Highlights

This globe valve actuator features a straightway body pattern and is constructed with durable brass material. It is designed for modulating control with a power input of 24 VAC.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -5 to 55 °C
• Ambient Air Temperature for Storage: -40 to 70 °C
• Stroke Length: 16.5 mm
• Protection Rating: NEMA 2
• Weight: 2.75 kg
