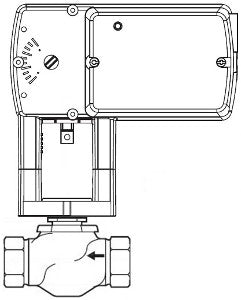

Schneider Electric VS-7273-804-4-04 SmartX Globe Valve Assembly 1/2 in 2-Way MS51-7103-100

Product Description

The Schneider Electric VS-7273-804-4-04 is a smart globe valve assembly with a one-half inch size, featuring a two-way configuration. This valve is designed for efficient control of fluid flow in HVAC systems and other applications.

• Body Size: 1/2 inches
• Configuration: 2-Way
• Type: Globe

Product Highlights

The smart actuator enables proportional control, making it suitable for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve actuator assembly

Technical Specifications

• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI
• Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
• Control Signal Range: 2 to 10 VDC
• Operating Fluid Temperature: -7 to 204 °C
• Stem Flow Action: Stem up open
• Protection Rating: NEMA 2
• Actuator Type: Electric, spring return
• Material Trim: Stainless Steel
• Ambient Air Temperature for Operation: -30 to 60 °C
• Current Consumption: 140 mA
