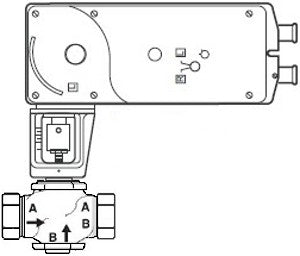

Schneider Electric VS-7263-593-4-09 SmartX Globe Valve Assembly 1-1/4 in 2-way MS51-7203 Spring Return Proportional Actuator

Product Description

The Schneider Electric VS-7263-593-4-09 is a globe valve assembly designed for efficient flow control. This product includes a two-way configuration suitable for various applications. The assembly features a stainless steel trim and an electric actuator, providing reliable operation.

• Body Size: 1-1/4 inches
• Flow Coefficient: 20 cv
• Control Signal: Proportional

Product Highlights

This valve assembly offers precise control and durability for your system, making it ideal for HVAC and plumbing applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-7263-593-4-09

Technical Specifications

• Body Material: Bronze
• Connection: NPT
• Close-Off Pressure: 150 PSI
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Current Consumption: 290 mA
• Stem Flow Action: Stem up A closed
• Operating Fluid Temperature: -7 to 171 °C
• Ambient Air Temperature For Operation: -17.7 to 60 °C
• Protection Rating: NEMA 2
• Actuator Type: Electric
• Mechanical Movement: Linear
