Schneider Electric VS-7253-804-4-07 Globe Valve Assembly 2 Way 1 in.

Product Description

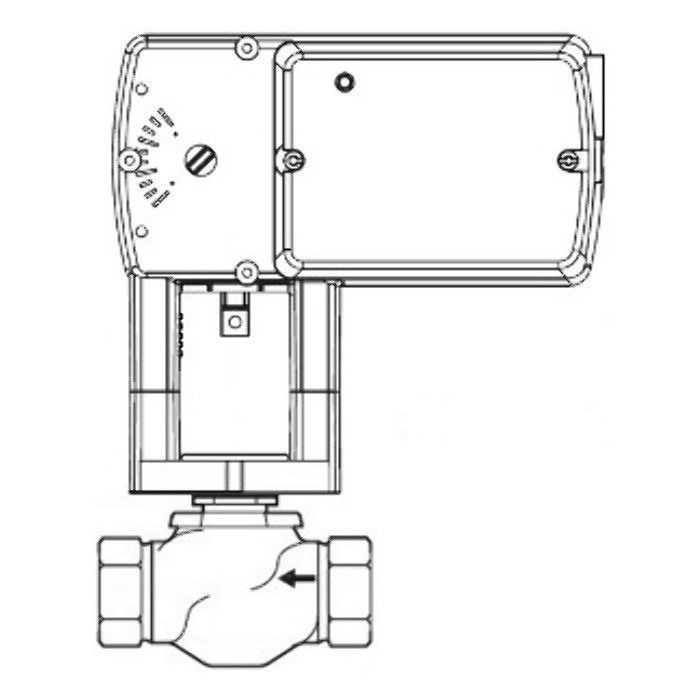

The Schneider Electric VS-7253-804-4-07 is a reliable globe valve assembly designed for efficient control in HVAC systems. This two-way valve features a one-inch NPT connection and is equipped with a direct coupled actuator. The actuator operates with a spring return mechanism, powered by twenty-four VAC, making it suitable for modulating control applications.

• NPT connection for easy installation
• Compact design for limited space
• Modulating control with a range of two to ten VDC

Product Highlights

This valve assembly provides excellent performance in a variety of heating and cooling applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-7253-804-4-07

Technical Specifications

• Body Size: 1 inch
• Flow Coefficient: 10 Cv
• Close-Off Pressure: 150 PSI
• Power Supply: 24 VAC/VDC
• Operating Conditions: -22°F to 140°F (-30°C to 60°C)
• NEMA Rating: NEMA 2, IP54
• Electrical Connections: 3 ft. Plenum Cable
• Stem Action: Up Open
