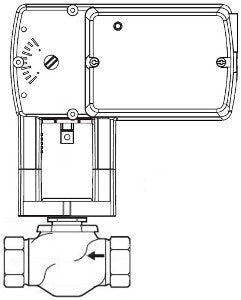

Schneider Electric VS-7253-804-4-06 SmartX Globe Valve Assembly 3/4 in 2-way MS51-7103-100

Product Description

The Schneider Electric VS-7253-804-4-06 is a globe valve assembly designed for efficient flow regulation. This product features a three-quarter inch body size and operates in a two-way configuration, suitable for diverse HVAC applications.

• Flow coefficient of 7.5 cv for effective flow management.
• Electric actuator type with proportional control signal for precise adjustments.
• Spring return mechanism ensures valve acts normally open in case of power loss.

Product Highlights

This assembly is ideal for projects requiring reliable control, such as heating and cooling systems, ensuring efficient operation across various settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin Country: US

Technical Specifications

• Body Size: 3/4 inches
• Configuration: 2-Way
• Actuator Type: Electric
• Control Signal Range: 2 to 10 VDC
• Loss of Power Type: Spring Return
• Close-Off Pressure: 200 PSI
• Material Trim: Stainless Steel
• Ambient Temperature for Operation: -30 to 60 °C
• Flow Coefficient: 7.5 cv
• Relative Humidity: 5-95 % non-condensing
• Force: 105 lbf
