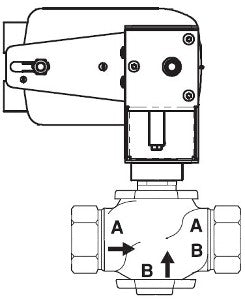

Schneider Electric VS-7223-536-4-09 SmartX Globe Valve Assembly 1-1/4 in 2-way

Product Description

Schneider Electric VS-7223-536-4-09 is a smart globe valve assembly designed for efficient fluid control. This valve features a body size of one and one-fourth inches and a two-way configuration. It uses an electric actuator with a spring return mechanism to operate normally closed under standard conditions.

• Body material: Bronze
• Control signal: Proportional with a range of two to ten VDC
• Rated supply voltage: 24 VAC/VDC

Product Highlights

This globe valve assembly is suitable for various HVAC and automation applications. It facilitates precise control of fluids in both residential and commercial settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1-1/4 in
• Flow Coefficient: 20 cv
• Close-Off Pressure: 75 PSI
• Torque: 35 in-lb
• Operating Fluid Temperature: -7-138 °C
• Electrical Insulation Class: Class II
• Ambient Air Temperature for Operation: -30-60 °C
• Relative Humidity: 5-95 % non-condensing
