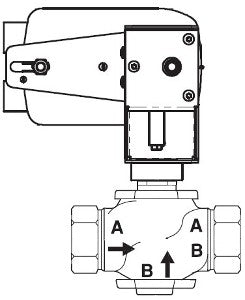

Schneider Electric VS-7223-536-4-07 SmartX Valve Assembly 1 in 2-way

Product Description

The Schneider Electric VS-7223-536-4-07 is a SmartX Globe Valve Assembly. This assembly features a one-inch body size and operates as a two-way valve with a stem up-close configuration. It has a flow coefficient of 10 cv and can withstand a close-off pressure of 125 PSI. The unit requires a control signal of 2 to 10 VDC or 4 to 20 mAdc and operates on 24 VAC/VDC. The assembly is designed for reliable performance in HVAC applications.

• Body size: 1 inch
• Actuator type: Electric rotary
• Control type: Proportional with manual override

Product Highlights

This valve assembly is suitable for use in controlling the flow of liquids in various HVAC settings, contributing to efficient system operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Connection: NPT
• Material Trim: Brass
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Valve Rotation: 95 °
• Relative Humidity: 5-95 % non-condensing
