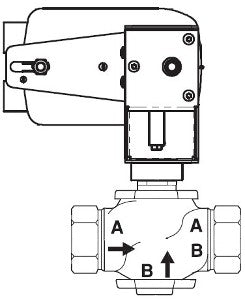

Schneider Electric VS-7223-536-4-01 Globe Valve Assembly 0.4 Cv 250 PSI

Product Description

The Schneider Electric VS-7223-536-4-01 is a globe valve assembly designed for various control applications. This valve features a body size of half an inch and operates as a two-way system. With a flow coefficient of 0.4 cv, it can handle pressures up to 250 PSI. This electric actuator is powered by 24 VAC or VDC voltage and includes a safety spring return feature that keeps the valve normally closed during power loss.

• Body Size: 1/2 inch
• Configuration: 2-Way
• Type: Globe

Product Highlights

This product is suitable for HVAC applications and other environments requiring precise flow control. The valve's construction includes a bronze body and PTFE sealing materials, ensuring durability and effective sealing. Its actuator operates with a rotary motion, providing reliable control.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Power Input Voltage: 24 VAC/VDC
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Close-Off Pressure: 250 PSI
• Torque: 35 in-lb
• Stem Flow Action: Stem up A closed
• Protection Rating: NEMA 2
• Actuator Type: Electric
• Operating Fluid Temperature: -7 to 138 °C
