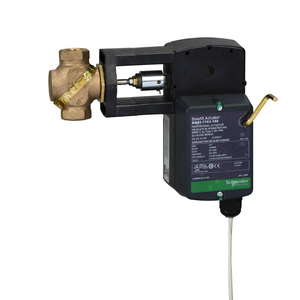

Schneider Electric VS-7213-804-4-02 SmartX Globe Valve Assembly 1/2 in 2-way 1.3 Cv

Product Description

Schneider Electric VS-7213-804-4-02 is a SmartX globe valve assembly. This valve has a half-inch size and a two-way configuration. The valve is designed for proportional control with an actuator that features a spring return mechanism. It operates with a power input of twenty-four volts AC or DC, making it suitable for various applications in HVAC systems.

• Body Size: 1/2 inch
• Flow Coefficient: 1.3 cv
• Actuator Type: Electric

Product Highlights

This globe valve assembly is ideal for controlling flow in heating, ventilation, and air conditioning systems. It is efficient for use in residential and commercial environments, with a maximum close-off pressure of two hundred fifty PSI.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: TAC

Technical Specifications

• Configuration: 2-Way
• Body Pattern: Straightway
• Connection Type: NPT
• Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
• Flow Coefficient: 1.3 cv
• Close-Off Pressure: 250 PSI
• Mechanical Movement: Linear
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
