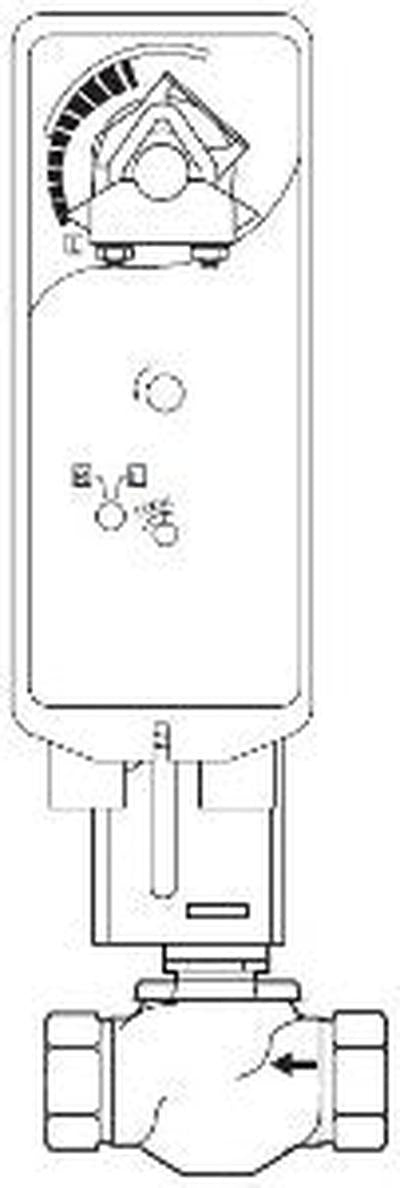

Schneider Electric VS-7213-557-4-09 SmartX Globe Valve Assembly 1-1/4 in 2-Way MS41-7153-502

Product Description

Schneider Electric VS-7213-557-4-09 is a SmartX globe valve assembly designed for precise control in HVAC applications. This valve features a one and one-quarter inch size and a two-way configuration. It utilizes a proportional control signal, which allows it to adjust flow based on varying inputs. The electronic actuator provides reliable operation and can handle high close-off pressure.

• Body Size: 1-1/4 in
• Flow Coefficient: 20 cv
• Actuator Type: Electric

Product Highlights

This globe valve assembly is suitable for automatic control in HVAC systems. It incorporates a spring return feature, ensuring that the valve returns to its normal position when power is lost. It is built with durable materials to withstand harsh conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: VS-7213-557-4-09
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Close-Off Pressure: 200 PSI
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 133 in-lb
• Ambient Air Temperature for Operation: -30 to 60 °C
• Current Consumption: 280 mA
• Protection Rating: NEMA 1, NEMA 2
• Seating Seal Material: EPDM
