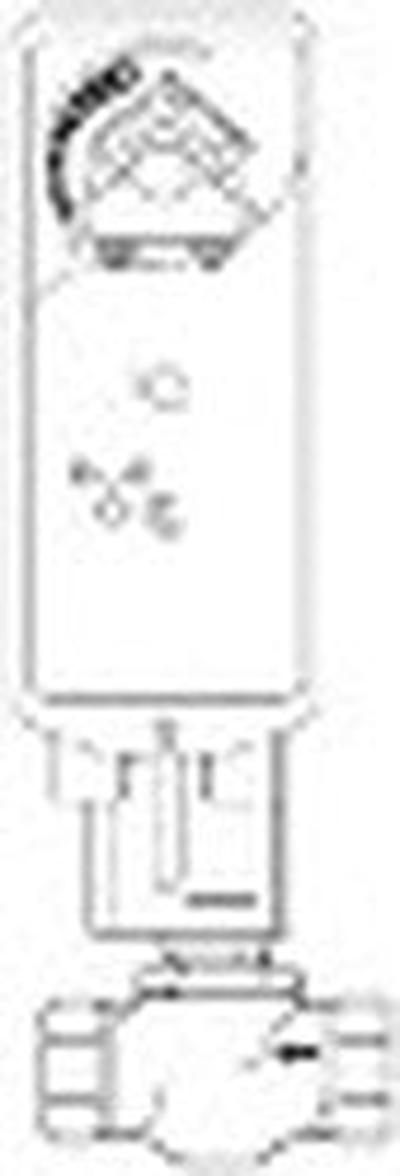

Schneider Electric VS-7213-547-4-08 SmartX Globe Valve Assembly 1 in 2-way Spring Return Proportional Actuator

Product Description

The Schneider Electric VS-7213-547-4-08 is a globe valve assembly designed for various applications. It features a one-inch body size and operates as a two-way valve. This valve is equipped with a spring return proportional actuator for precise control.

• Body size: 1 inch
• Flow coefficient: 14 cv
• Control signal: Proportional

Product Highlights

This valve assembly is suitable for HVAC systems and other fluid control needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 2-way
• Connection: NPT
• Material Trim: Brass
• Actuator Type: Electric
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Close-Off Pressure: 180 PSI
• Torque: 60 in-lb
• Ambient Air Temperature for Operation: -30-60 °C
• Seat Material: Bronze
• Seating Seal Material: EPDM
