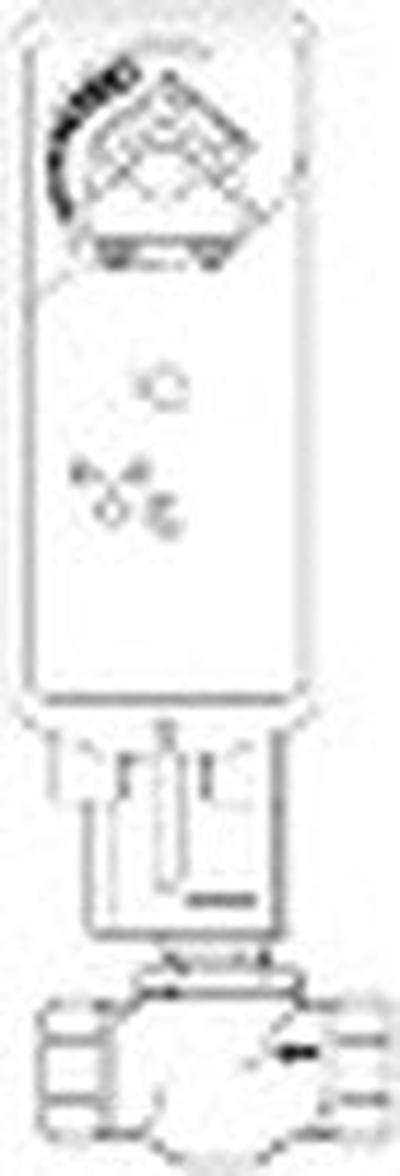

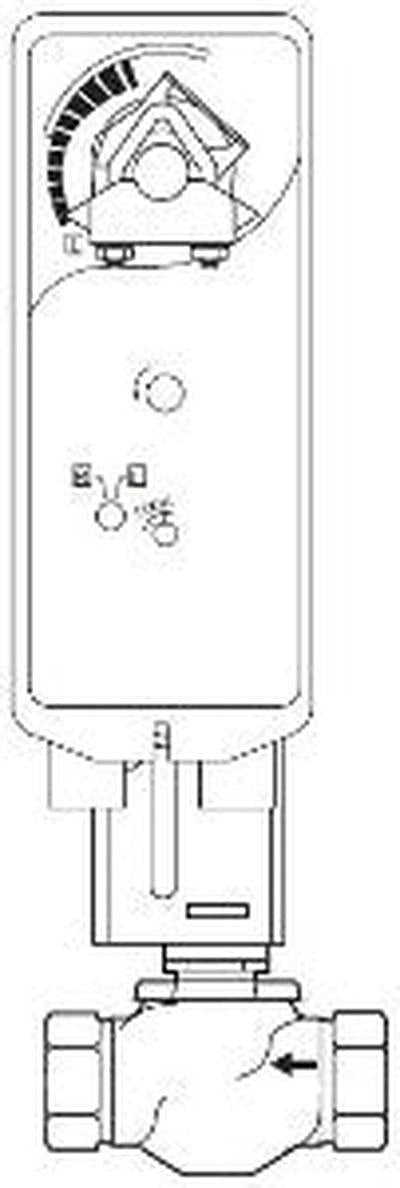

Schneider Electric VS-7213-547-4-07 SmartX Globe Valve Assembly 1 in 2-way MS41-7073-502 Spring Return Proportional Actuator

Product Description

The Schneider Electric VS-7213-547-4-07 is a SmartX globe valve assembly designed for efficient control in heating and cooling applications. This valve features a one-inch body size and operates in a two-way configuration, ideal for various HVAC systems. It includes a spring return proportional actuator, which allows for precise control and response.

• Body Size: 1 inch
• Configuration: 2-Way
• Material: Brass

Product Highlights

This valve assembly is suitable for applications demanding reliability. Its electric actuator ensures efficient operation with a torque of sixty inch-pounds. The valve operates under a control signal range of two to ten VDC or four to twenty mAdc. With a close-off pressure rating of one hundred eighty PSI, it is designed to handle significant pressure levels.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-7213-547-4-07

Technical Specifications

• Connection: NPT
• Flow Coefficient: 10 cv
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Torque: 60 in-lb
• Control Signal: Proportional
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Protection Rating: NEMA 1, NEMA 2
