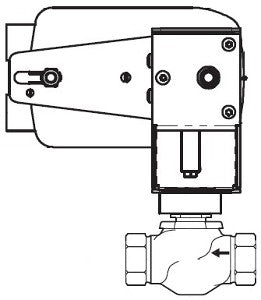

Schneider Electric VS-7213-537-4-04 SmartX Globe Valve Assembly 1/2 in 2-Way MS40-7043-501

Product Description

The Schneider Electric VS-7213-537-4-04 is a SmartX Globe Valve Assembly designed for effective fluid control. This unit features a half inch body size with a two-way configuration suitable for various applications. The electric actuator provides reliable operation with proportional control signals.

• Body Size: 1/2 inch
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI

Product Highlights

The valve assembly is ideal for HVAC systems, allowing for precise control of water and steam flows. It is widely used in commercial and industrial environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Stem Flow Action: Stem up A open
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Material Trim: Brass
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Ambient Air Temperature for Storage: -40 to 71 °C
• Valve Range: Venta
• Actuator Range: SmartX Actuator
