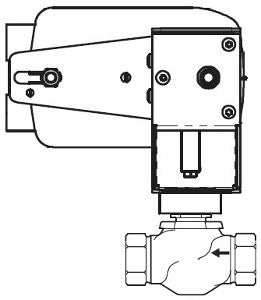

Schneider Electric VS-7213-537-4-03 SmartX Globe Valve Assembly 1/2 in 2-Way

Product Description

The Schneider Electric VS-7213-537-4-03 is a smart globe valve assembly designed for effective fluid control. This valve features a two-way design and has a stem up open action.

• Body Size: 1/2 inch
• Flow Coefficient: 2.2 cv
• Power Input Voltage: 24 VAC/VDC

Product Highlights

This valve assembly provides robust control in HVAC applications, making it suitable for both heating and cooling systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Close-Off Pressure: 250 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mA DC
• Loss of Power Type: Spring Return
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Mechanical Movement: Rotary
• Auxiliary Switch: 1 SPDT
• Relative Humidity: 5-95% non-condensing
