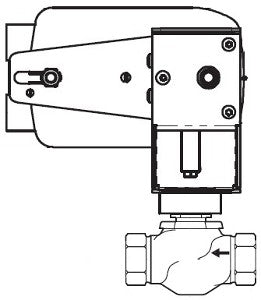

Schneider Electric VS-7213-536-4-11 SmartX Globe Valve Assembly 2 in 2-Way MS40-7043

Product Description

The Schneider Electric VS-7213-536-4-11 is a SmartX globe valve assembly designed for efficient flow control. It features a two-way configuration and a body size of two inches. The actuator provides proportional control, ensuring precise operation in various applications.

• Body Pattern: Straightway
• Stem Flow Action: Stem up A open
• Actuator Type: Electric

Product Highlights

This globe valve assembly is ideal for HVAC systems, providing reliable performance with its electric actuator and spring return mechanism for loss of power scenarios.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Close-Off Pressure: 25 PSI
• Flow Coefficient: 40 cv
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -30 to 60 °C
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Control Signal Range: 2 to 10 VDC, 4 to 20 mA DC
