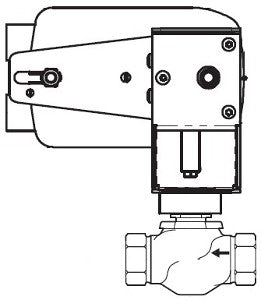

Schneider Electric VS-7213-536-4-09 SmartX Globe Valve Assembly 1-1/4 in 2-Way MS40-7043

Product Description

The Schneider Electric VS-7213-536-4-09 is a SmartX Globe Valve Assembly designed for efficient fluid control. This valve features a body size of one and one-fourth inches and operates as a two-way globe valve, ensuring precise flow regulation in various applications.

• Body size: 1-1/4 inches
• Actuator type: Electric
• Power input voltage: 24 VAC/VDC, 22 to 30 VDC

Product Highlights

This valve assembly is ideal for HVAC systems and other fluid control applications. It offers a robust construction with brass trim and a spring return feature, enhancing operational reliability.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow coefficient: 20 cv
• Close-off pressure: 75 PSI
• Control signal range: 2 to 10 VDC, 4 to 20 mAdc
• Torque: 35 in-lb
• Material trim: Brass
• Protection rating: NEMA 2
• Operating fluid temperature: -7 to 138 °C
• Seat leakage: Class IV (0.01 %)
