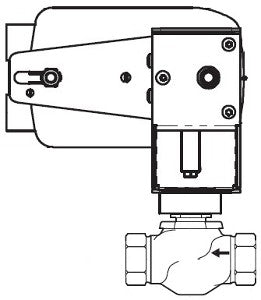

Schneider Electric VS-7213-536-4-08 SmartX Globe Valve Assembly 1 in 2-Way MS40-7043 Spring Return Proportional Actuator

Product Description

The Schneider Electric VS-7213-536-4-08 is a SmartX globe valve assembly designed for efficient fluid control. This device features a one-inch body size and a two-way configuration, making it suitable for various applications in HVAC and control systems.

• Body Size: 1 inch
• Connection Type: NPT
• Flow Coefficient: 14 cv

Product Highlights

This valve assembly includes a spring return proportional actuator, ensuring reliable operation and control. It supports a control signal range of two to ten VDC or four to twenty mA DC.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve Actuator Assembly

Technical Specifications

• Actuator Type: Electric
• Close-Off Pressure: 125 PSI
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Stem Flow Action: Stem up open
• Material Trim: Brass
• Protection Rating: NEMA 2
• Temperature Range: -7 to 138 °C
• Relative Humidity: 5-95% non-condensing
• Torque: 35 in-lb
