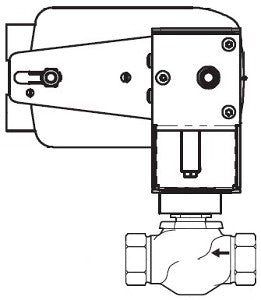

Schneider Electric VS-7213-536-4-06 SmartX Globe Valve Assembly 3/4 In 2-Way MS40-7043 Spring Return Proportional Actuator

Product Description

The Schneider Electric VS-7213-536-4-06 is a SmartX globe valve assembly designed for efficient flow control. This assembly features a three-quarters inch body size and is configured as a two-way valve with a stem up open action. The unit includes a spring return proportional actuator, making it suitable for a range of applications in HVAC systems.

• Flow coefficient of 7.5 cv
• Body material made of brass
• Electric actuator with proportional control

Product Highlights

This valve assembly is ideal for maintaining optimal flow rates and managing system pressure. It can be used in various settings, including commercial and industrial environments, ensuring reliability and performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 3/4 inches
• Configuration: 2-Way
• Flow Coefficient: 7.5 cv
• Close-Off Pressure: 250 PSI
• Actuator Type: Electric
• Control Signal Range: 2-10 VDC, 4-20 mAdc
• Loss of Power Position: Normally open
• Power Input Voltage: 24 VAC/VDC, 22-30 VDC
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5-95 % non-condensing
