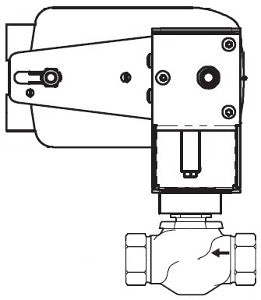

Schneider Electric VS-7213-536-4-04 SmartX Globe Valve Assembly 1/2 in 2-way 4.4 Cv

Product Description

Schneider Electric VS-7213-536-4-04 is a SmartX globe valve assembly that features a half-inch body size and a two-way configuration. It offers high efficiency with a four-point-four flow coefficient. This valve is ideal for various HVAC applications and operates with a proportional spring return actuator.

• Body Size: 1/2 in
• Flow Coefficient: 4.4 Cv
• Actuator Type: Electric

Product Highlights

This globe valve assembly is designed for versatility in different control systems, ensuring effective fluid control. The built-in electric actuator allows easy integration into existing systems while providing reliable operation. It's suitable for various industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Valve Type: Globe
• Connection: NPT
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Close-Off Pressure: 250 PSI
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Stroke Length: 95 °
