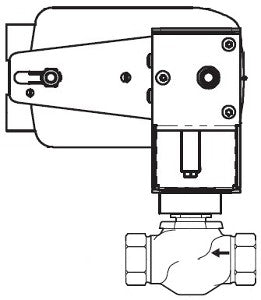

Schneider Electric VS-7213-536-4-03 SmartX Globe Valve Assembly 2-Way

Product Description

Schneider Electric offers the VS-7213-536-4-03 SmartX Globe Valve Assembly. This assembly is designed for efficient control in fluid applications. The product features a half-inch body size and is configured as a two-way valve with a stem-up open design, suitable for various installations.

• Body configuration: Two-way
• Actuator type: Electric
• Flow coefficient: 2.2 cv

Product Highlights

This globe valve assembly helps in precise flow management, ensuring reliable operation in HVAC systems and other applications. It includes a proportional actuator that adjusts flow based on control signals for optimal performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 1/2 in
• Material Trim: Brass
• Close-Off Pressure: 250 PSI
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7-138 °C
• Electrical Insulation Class: Class II
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
