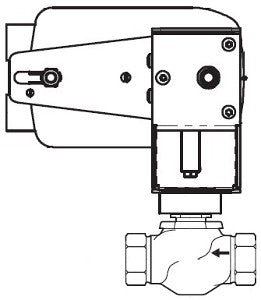

Schneider Electric VS-7213-536-4-02 SmartX Globe Valve Assembly 1/2 in 2-Way MS40-7043

Product Description

Schneider Electric VS-7213-536-4-02 is a globe valve assembly designed for effective flow control in various systems. It features a body size of one half inch and supports a two-way configuration. This valve assembly is suitable for applications requiring reliable performance and effective operation.

• Body Size: 1/2 inch
• Type: Globe
• Actuator Type: Electric

Product Highlights

This valve assembly is built with a brass trim and is designed for spring return functionality. It operates effectively under a control signal range of two to ten VDC or four to twenty mA DC.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 1.3 cv
• Close-Off Pressure: 250 PSI
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Saturated Steam Temperature: -7 to 138 °C
