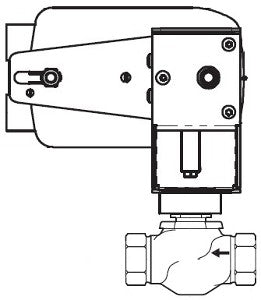

Schneider Electric VS-7213-536-4-01 SmartX Globe Valve Assembly 1/2 in 2-Way MS40-7043

Product Description

Schneider Electric VS-7213-536-4-01 is a SmartX globe valve assembly designed for precise control in fluid systems. It features a half-inch body size and two-way configuration, allowing for reliable flow regulation. The valve is suitable for use in various HVAC and process control applications, ensuring efficient operation.

• Body Size: 1/2 in
• Actuator Type: Electric
• Material: Brass

Product Highlights

This valve assembly includes a proportional actuator for easy integration into automated systems. The electric actuator supports a range of control signals ensuring flexibility in various installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Flow Coefficient: 0.4 cv
• Close-Off Pressure: 250 PSI
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 138 °C
• Spring Return Timing: Normally open
