Schneider Electric VS-7213-112-4-08 SmartX Globe Valve Assembly 24 V AC

Product Description

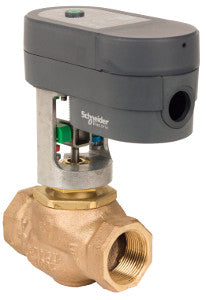

The Schneider Electric VS-7213-112-4-08 is a SmartX globe valve assembly. This unit has a body size of one inch and features a two-way configuration for efficient flow control. It is designed for use in various applications requiring reliable valve performance.

• Power Input: 24 VAC
• Control Type: Modulating
• Protection Rating: NEMA 2

Product Highlights

This globe valve assembly combines advanced control capabilities with robust construction for superior performance in HVAC systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve-Actuator Assembly

Technical Specifications

• Body Size: 1 inch
• Flow Coefficient: 14 cv
• Close-Off Pressure: 67 PSI
• Actuator Type: Electric
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mA DC
• Loss of Power Position: Non-Spring Return
• Force: 67 lbf
• Mechanical Movement: Linear
• Feedback Feature: Yes
• Operating Fluid Temperature: -7 to 138 °C
