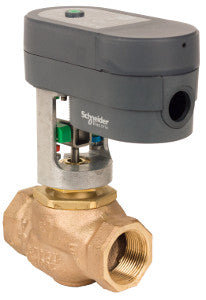

Schneider Electric VS-7213-112-4-07 Globe Valve Assembly 1 in 2-Way 10 cv

Product Description

Schneider Electric VS-7213-112-4-07 is a globe valve assembly designed for fluid control applications. This valve has a body size of one inch and operates in a two-way configuration. It features a modulating control signal that enhances flow management. The product is suitable for various industrial uses, providing reliable performance under specified conditions.

• Brass material trim for durability
• Feedback and LED status indicator for operational awareness
• Electric actuator with linear mechanical movement

Product Highlights

This globe valve assembly is designed for efficient flow control and features a fail-in-place non-spring return for safety during power loss.

Product Information

Standard Information

• Body Size: 1 in
• Configuration: 2-Way

Technical Specifications

• Flow Coefficient: 10 cv
• Close-Off Pressure: 67 PSI
• Actuator Type: Electric
• Control Signal: Modulating, 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 67 lbf
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: -5 to 55 °C
• Relative Humidity: 5 to 95 % non-condensing
• Material Trim: Brass
