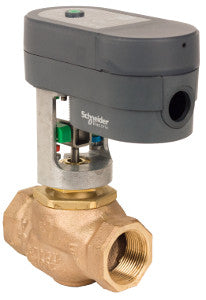

Schneider Electric VS-7213-110-4-09 Globe Valve Assembly 1-1/4 in 2-Way

Product Description

The Schneider Electric VS-7213-110-4-09 is a globe valve assembly designed for efficient control of fluid flow. This valve features a body size of one and one-quarter inches and is configured for two-way operation. It utilizes a modulating control signal to adjust flow as required, making it suitable for HVAC applications.

• Type: Globe Valve
• Body Material: Bronze
• Power Input: 24 VAC

Product Highlights

This unit offers a non-spring return actuator and has a flow coefficient of twenty. It is rated for a close-off pressure of forty-nine PSI and supports ambient temperatures from negative five to fifty-five degrees Celsius.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Model: VS-7213-110-4-09
• Connection Type: NPT
• Actuator Type: Electric
• Control Signal: Modulating, 0 to 10 VDC
• Close-Off Pressure: 49 PSI
• Force: 78 lbf
• Protection Rating: NEMA 2
