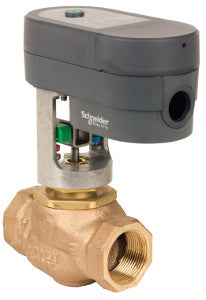

Schneider Electric VS-7213-110-4-07 SmartX Globe Valve Assembly 1 in 2-Way

Product Description

Schneider Electric VS-7213-110-4-07 is a SmartX globe valve assembly designed to manage fluid flow effectively. This model features a one-inch body size and operates as a two-way valve with a stem-up open action. It is ideal for various HVAC applications requiring precise control of fluid dynamics.

• Body Size: 1 inch
• Flow Control: Modulating control signal
• Power Input: 24 VAC

Product Highlights

This valve offers robust features including a brass trim, close-off pressure rating of seventy-nine PSI, and a flow coefficient of ten cv. It utilizes a linear actuator for smooth operation and includes a LED status indicator for real-time monitoring. This assembly is suitable for both commercial and industrial applications in North America.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC
• Force: 78 lbf
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -5 to 55 °C
• Seating Seal Material: EPDM
• Mechanical Movement: Linear
• IP Rating: NEMA 2
