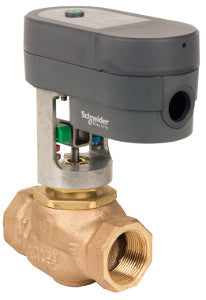

Schneider Electric VS-7213-110-4-05 Globe Valve Assembly 3/4 in 2-Way Replacement MPN

Product Description

The Schneider Electric VS-7213-110-4-05 is a globe valve assembly designed for effective fluid control. It features a three-quarter inch size and operates as a two-way valve. This assembly is ideal for applications in HVAC and plumbing where modulating control is necessary. The valve uses a non-spring return mechanism, making it suitable for automatic operation and precise flow management.

• Body Size: 3/4 inch
• Control Signal: Modulating
• Protection Rating: NEMA 2

Product Highlights

This valve assembly is engineered for linear mechanical movement and supports a maximum pressure of 157 PSI. It operates on a power input of 24 VAC and provides an electric actuator type for reliable performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 5.5 cv
• Force: 78 lbf
• Operating Fluid Temperature: -7 to 138 °C
• Saturated Steam Temperature: -7 to 138 °C
• Seat Leakage: Port A: Class IV (0.01 %); Port A: Class V
• Control Voltage: 24 VAC, 20 to 24 VDC
• Ambient Air Temperature for Operation: -5 to 55 °C
• Stroke Length: 16.5 mm
