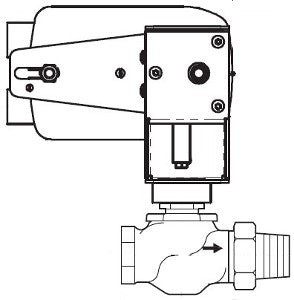

Schneider Electric VS-7211-536-4-08 SmartX Globe Valve Assembly 1 In 2 Way MS40-7043 Spring Return Proportional Actuator

Product Description

The Schneider Electric VS-7211-536-4-08 is a smart globe valve assembly designed for efficient operation in various applications. This valve features a body size of one inch and supports two-way flow control, making it ideal for regulating fluid systems.

• Configuration: 2-Way
• Material Trim: Brass
• Actuator Type: Electric

Product Highlights

The SmartX globe valve assembly ensures reliable performance and precise flow control in HVAC and industrial systems.

Product Information

Standard Information

• Body Size: 1 inch
• Type: Globe

Technical Specifications

• Flow Coefficient: 14 cv
• Close-Off Pressure: 125 PSI
• Control Signal: Proportional (2 to 10 VDC, 4 to 20 mA DC)
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Torque: 35 in-lb
• Operating Fluid Temperature: -7 to 138 °C
• Protection Rating: NEMA 2
• Ambient Air Temperature For Operation: -30 to 60 °C
• Humidity: 5-95 % non-condensing
• Actuator Rotation: 95 °
