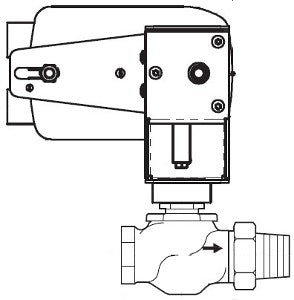

Schneider Electric VS-7211-536-4-04 SmartX Globe Valve Assembly 1/2 in 2-Way MS40-7043

Product Description

Schneider Electric VS-7211-536-4-04 is a SmartX Globe Valve Assembly designed for precise control in HVAC systems. This valve features a half inch body size and a two-way configuration, making it suitable for a variety of applications. The assembly includes an electric actuator that is spring return driven.

• Body Size: Half inch
• Flow Coefficient: 4.4 cv
• Material: Brass

Product Highlights

This globe valve is ideal for regulating fluid flow in heating and cooling systems. It offers reliable operation with a close-off pressure of 250 PSI and can operate in varying temperatures from minus seven to one hundred thirty-eight degrees Celsius. The unit is equipped with a rotary actuator that supports a 2 to 10 VDC control signal.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Actuator Type: Electric
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Loss of Power Type: Spring Return
• Operating Fluid Temperature: -7 to 138 °C
• Flow Pattern: Class IV
• Analogue Input Range: 2 to 10 VDC, 4 to 20 mA
