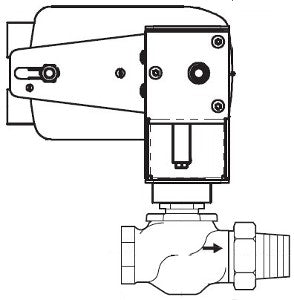

Schneider Electric VS-7211-536-4-02 SmartX Globe Valve Assembly 1/2 in 2-Way

Product Description

Schneider Electric VS-7211-536-4-02 is a globe valve assembly designed for effective fluid control. This model features a half-inch size and offers a two-way configuration. The actuator type is electric, which provides proportional control for precise operation.

• Body Size: Half inch
• Material: Brass
• Flow Coefficient: 1.3 cv

Product Highlights

This valve assembly is suitable for various applications, including HVAC systems and industrial controls, ensuring reliable performance across different conditions.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-way
• Stem Flow Action: Stem up open
• Close-Off Pressure: 250 PSI
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Actuator Type: Spring return proportional actuator
