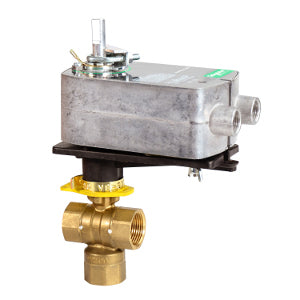

Schneider Electric VS-2313-536-9-46 Ball Valve 3-Way Mixing NPT Replacement VS-2313-536-9-46

Product Description

The Schneider Electric VS-2313-536-9-46 is a 3-way ball valve assembly designed for reliable fluid control in HVAC and industrial applications. It features a body size of one and one-quarter inches, NPT connection type, and a brass trim that enhances durability. This electric actuator valve operates within a pressure range of up to forty PSI and provides a flow coefficient of thirty-four point one. The device is designed for proportional control signals, making it suitable for precise applications.

• Body Size: 1-1/4 inches
• Connection Type: NPT
• Torque: 35 in-lb

Product Highlights

Designed for automatic and manual override operations, this valve ensures efficient control of air and water flow. The actuator mechanism is rotary, making it suitable for diverse applications in commercial systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 34.1 cv
• Close-Off Pressure: 40 PSI
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Protection Rating: NEMA 2
• Ambient Temperature Range: -30 to 60 °C
• Torque Value: 34.96 lbf.in
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
