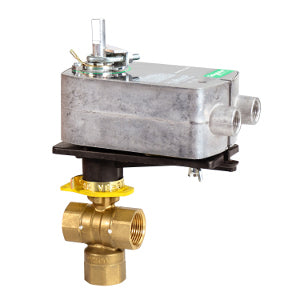

Schneider Electric VS-2313-536-9-43 Valve Actuator Assembly 24 V AC 1-1/4 in

Product Description

Schneider Electric VS-2313-536-9-43 is a valve actuator assembly designed for effective control in various applications. This assembly includes a three-way ball valve configuration, suitable for effective mixing of fluids. The sizing is one and one-quarter inches, allowing for suitable integration in various systems.

• Body Size: 1-1/4 inches
• Connection Type: NPT
• Torque: 35 in-lb

Product Highlights

This product is ideal for HVAC applications, providing reliable operation with an electric actuator that allows for precise control signals. The spring return feature ensures normal operation even during power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Mixing
• Flow Coefficient: 8.7 cv
• Close-Off Pressure: 40 PSI
• Actuator Type: Electric
• Control Signal: Proportional, 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Leads and Connections: 3 ft Plenum
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature For Operation: -30 to 60 °C
• Ambient Air Temperature For Storage: -40 to 71 °C
• Relative Humidity: 5 to 95 % non-condensing
• Manual Override: Yes, with 5/32 allen wrench
