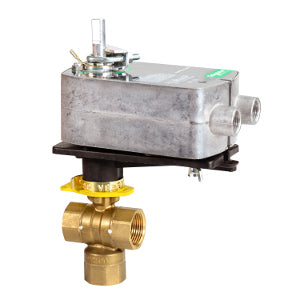

Schneider Electric VS-2313-536-9-30 Valve Assembly 1 in 3-Way Mixing NPT

Product Description

Schneider Electric VS-2313-536-9-30 is a valve assembly designed for mixing applications. It features a body size of one inch and is a three-way mixing type ball valve with NPT connections. This valve is made of forged brass and operates efficiently under a maximum close-off pressure of fifty PSI.

• Body Size: 1 inch
• Configuration: 3-Way Mixing
• Torque: 35 in-lb

Product Highlights

This valve assembly provides reliable operation for your mixing needs. The electric actuator supports proportional control signals, facilitating accurate flow management. The product is rated for NEMA 2 protection, making it suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VS-2313-536-9-30

Technical Specifications

• Actuator Type: Electric
• Flow Coefficient: 22.3 cv
• Control Signal Range: 2 to 10 VDC, 4 to 20 mA
• Power Input Voltage: 24 VAC, 22 to 30 VDC
• Installation Configuration: Normally Open
• Material Trim: Brass
• Operating Fluid Temperature: -7 to 121 °C
• Relative Humidity: 5-95 % non-condensing
