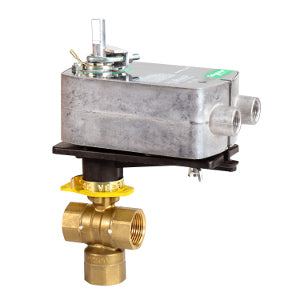

Schneider Electric VS-2313-536-9-29 Valve Assembly 1 in 3-Way Mixing

Product Description

Schneider Electric VS-2313-536-9-29 is a valve assembly designed for efficient flow management. The product features a body size of 1 inch and is configured as a 3-way mixing ball valve. It utilizes NPT connection for secure and reliable installation.

• Brass material trim ensures durability
• Flow coefficient of 14.9 cv
• Designed for electric actuators with proportional control

Product Highlights

This valve assembly operates at a close-off pressure of 50 psi and includes a power input voltage of either twenty-four VAC or twenty-two to thirty VDC. It features a spring return mechanism, ensuring the valve returns to its default state when power is lost. Additionally, it has a protection rating of NEMA 2, making it suitable for various environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Mixing
• Type: Ball
• Connection: NPT
• Flow Coefficient: 14.9 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Power Input Voltage: 24 VAC, 22-30 VDC
• Torque: 35 in-lb
• Mechanical Movement: Rotary
• NEMA Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Relative Humidity: 5-95 % non-condensing
• Actuator Rotation: 95 °
