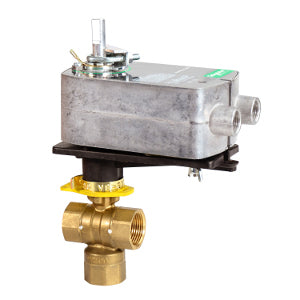

Schneider Electric VS-2313-536-9-15 Ball Valve Assembly

Product Description

The Schneider Electric VS-2313-536-9-15 is a 3/4 inch, three-way mixing ball valve assembly designed for efficient flow control in various applications. It features an electric actuator and a proportional control signal, making it suitable for precise adjustments. This assembly is made of brass with a flow coefficient of 3.8 CV and operates effectively at a close-off pressure of 50 PSI.

• Body Size: 3/4 inch
• Electrically actuated with manual override
• Designed for indoor use only

Product Highlights

This valve assembly supports various control signal ranges and maintains reliable operation with NEMA 2 protection.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Actuator Type: Electric, rotary
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Torque: 35 in-lb
• Ambient Air Temperature for Operation: -30 to 60 °C
• Protection Rating: NEMA 2
• Body Material: Forged brass
• Flow Coefficient: 3.8 CV
• Input Voltage: 24 VAC or 22 to 30 VDC
• Weight: Specify weight
