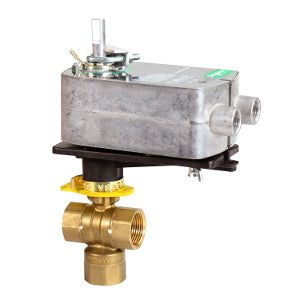

Schneider Electric VS-2313-536-9-04 Valve Actuator Assembly 3 Way Mixing 24 VAC

Product Description

The Schneider Electric VS-2313-536-9-04 is a valve actuator assembly designed for efficient control in HVAC systems. This model features a half-inch body size and a three-way mixing configuration. It uses a brass ball valve with a flow coefficient of 2.4 cv, ideal for various fluid applications.

• Body Material: Forged Brass
• Torque: 35 in-lb
• Electrical Insulation Class: Class II

Product Highlights

This valve actuator offers reliable electric operation with a proportional control signal range of two to ten VDC and four to twenty mA DC. The actuator is equipped with a spring return for safety, having a normal open position during a power loss.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1/2 in
• Configuration: 3-Way Mixing
• Actuator Type: Electric
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Operating Fluid Temperature: -7 to 121 °C
• Max Close-Off Pressure: 50 PSI
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: -30 to 60 °C
