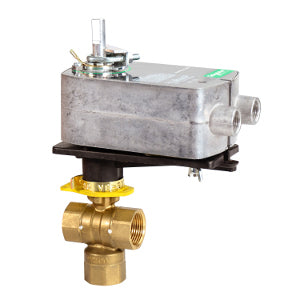

Schneider Electric VS-2313-536-9-03 Ball Valve Assembly 1/2 in

Product Description

Schneider Electric's VS-2313-536-9-03 is a 3-way ball valve assembly designed to manage fluid flow efficiently. It features a half-inch body size and operates with an electric actuator. This valve is ideal for various HVAC applications requiring precise control.

• 1/2 inch body size
• Electric actuator with a torque of 35 in-lb
• Proportional control signal range of 4 to 20 mAdc

Product Highlights

This valve assembly enables effective control in HVAC systems, ensuring optimal performance and energy efficiency.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 1/2 in
• Configuration: 3-Way Mixing
• Type: Ball
• Connection: NPT
• Material Trim: Brass
• Flow Coefficient: 1 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Ambient Air Temperature for Operation: -30 to 60 °C
• Control Type: Manual override with 5/32 allen wrench
• IP Degree of Protection: IP11
