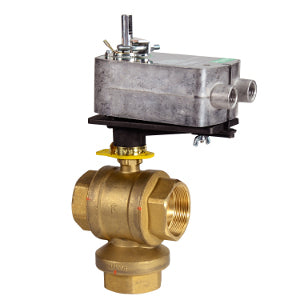

Schneider Electric VS-2313-526-9-52 Valve Assembly 1-1/2 in 3 Way NPT

Product Description

The Schneider Electric VS-2313-526-9-52 is a valve assembly designed for various applications. This assembly features a body size of one and one-half inches and consists of a three-way mixing configuration using a ball type connection. It connects via NPT and has a brass material trim.

• Body Size: 1-1/2 inches
• Flow Coefficient: 8.3 cv
• Actuator Type: Electric

Product Highlights

This valve assembly provides reliable operation using an electric actuator with a proportional control signal. It is suitable for applications requiring a flow coefficient of eight point three and can handle close-off pressure of forty PSI. Note: Not for use with steam.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Torque: 35 in-lb
• Protection Rating: NEMA 2
• Mechanical Movement: Rotary
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 5 to 95 % non-condensing
• Actuator Rotation: 95 °
