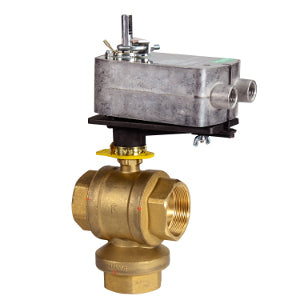

Schneider Electric VS-2313-526-9-51 Valve Actuator Assembly 3-Way Mixing 1-1/2 in

Product Description

The Schneider Electric VS-2313-526-9-51 is a valve actuator assembly designed for precise fluid control. This assembly features a body size of one and one-half inches and operates as a three-way mixing valve. It uses a brass material trim and is connected through NPT. The actuator is electric and accepts a control signal range from two to ten VDC or four to twenty mAdc.

• Body Size: 1-1/2 inches
• Control Signal: Proportional
• Close-Off Pressure: 40 PSI

Product Highlights

This actuator assembly is used primarily in HVAC applications to control the flow of water or other fluids efficiently. Its spring return feature ensures a normally closed position during loss of power. The assembly is built to withstand ambient temperatures from negative thirty to sixty degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• MPN: VS-2313-526-9-51
• Torque: 35 in-lb
• Material Trim: Brass
• Electrical Insulation Class: Class II
• Protection Rating: NEMA 2
• Actuator Type: Electric Rotary
• Power Input Voltage: 24 VAC and 22 to 30 VDC
• IP Degree of Protection: IP11
• Operating Fluid Temperature: -7 to 121 °C
• Relative Humidity: 5-95% non-condensing
