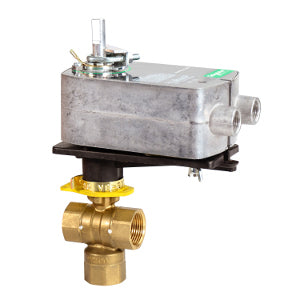

Schneider Electric VS-2313-526-9-45 3-Way Mixing Ball Valve Assembly

Product Description

Schneider Electric VS-2313-526-9-45 is a 3-way mixing ball valve assembly designed to ensure efficient flow management in various applications. This valve features a body size of one and one-quarter inches and utilizes a brass trim for durability. It supports a flow coefficient of nineteen point four and operates under a close-off pressure of forty PSI. The actuator is electric, with a control signal ranging from two to ten VDC.

• Body Size: 1-1/4 inches
• Flow Coefficient: 19.4 cv
• Close-Off Pressure: 40 PSI

Product Highlights

This valve assembly is ideal for HVAC systems and other applications requiring reliable flow control. It operates on a power input of twenty-four VAC or twenty-two to thirty VDC, and employs a spring return mechanism for fail-safe operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Connection Type: NPT
• Actuator Type: Electric
• Torque: 35 in-lb
• Material: Brass
• IP Rating: IP11
• Temperature Range: -7 to 121 °C
• Protection Rating: NEMA 2
