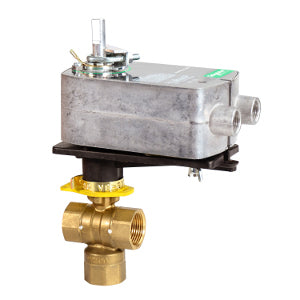

Schneider Electric VS-2313-526-9-43 Ball Valve Assembly 1-1/4 in 3-Way Mixing

Product Description

Schneider Electric VS-2313-526-9-43 is a ball valve assembly designed for reliable control of fluid flow. This assembly features a body size of one and one-quarter inches and operates as a three-way mixing valve. The valve utilizes a brass construction and has a flow coefficient of eight point seven cv.

• Body Size: 1-1/4 in
• Type: Ball
• Power Input Voltage: 24 VAC or 22 to 30 VDC

Product Highlights

This valve assembly is suitable for HVAC systems and is used in various applications where precise flow control is required. It is not recommended for steam use. The actuator type is electric with a proportional control signal capability ranging from four to twenty milliamps DC. This flexibility allows integration with most control systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Close-Off Pressure: 40 PSI
• Torque: 35 in-lb
• Operating Fluid Temperature: -7-121 °C
• Protection Rating: NEMA 2
• Electrical Insulation Class: Class II
• Mechanical Movement: Rotary
• Relative Humidity: 5-95 % non-condensing
• Motor Type: Brushless DC motor
