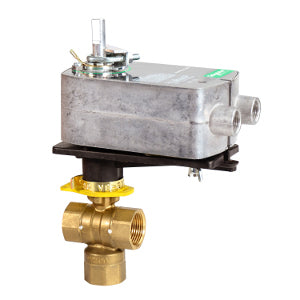

Schneider Electric VS-2313-526-9-41 Ball Valve Actuator Assembly 1-1/4 in

Product Description

Schneider Electric VS-2313-526-9-41 is a ball valve actuator assembly designed to control fluid flow. This unit features a body size of one and one-quarter inches and a three-way mixing configuration. It utilizes a brass trim and is rated for a maximum close-off pressure of forty PSI.

• Body size: 1-1/4 in
• Connection type: NPT
• Torque: 35 in-lb

Product Highlights

This product is suitable for HVAC and fluid control applications. The electric actuator provides precise control with a proportional signal range of two to ten VDC and four to twenty mAdc. It ensures reliable operation with a spring return mechanism for fail-safe performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 4.1 cv
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Electrical Insulation Class: Class II
• Protection Rating: NEMA 2
• Actuator Type: Rotary
• Control Type: Manual override with 5/32 allen wrench
