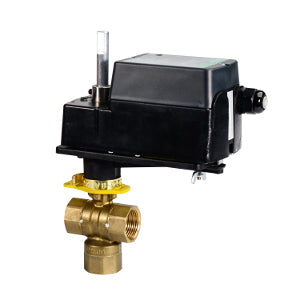

Schneider Electric VS-2313-505-9-16 Ball Valve 3-Way Mixing NPT Replacement MPN

Product Description

The Schneider Electric VS-2313-505-9-16 is a ball valve assembly designed for various plumbing and HVAC applications. This valve features a three-way mixing configuration and a three-quarter inch NPT connection. The actuator operates on twenty-four volts alternating current, making it suitable for a wide range of control systems.

• Body Size: three quarters inch
• Flow Coefficient: eleven cv
• Protection Rating: NEMA 2

Product Highlights

Designed to provide efficient flow management in HVAC systems and plumbing applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Configuration: 3-Way Mixing
• Type: Ball
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Power Input Voltage: 24 VAC
• Torque: 35 in-lb
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -31.6 to 54.4 °C
• Relative Humidity: 5 to 95 % non-condensing
• Electrical Insulation Class: Class II
• Motor Type: AC synchronous servo motor
• Power Consumption: 3 W
• Input Voltage: 24 V AC
• Product Destination: dampers, globe valve
