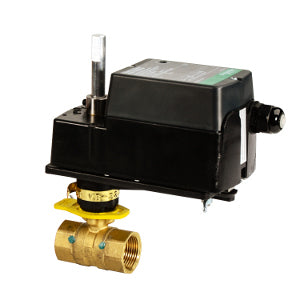

Schneider Electric VS-2253-831-9-06 Ball Valve Actuator Assembly 24 V AC / 20-30 V DC

Product Description

Schneider Electric VS-2253-831-9-06 is a ball valve actuator assembly designed for precise control in HVAC systems. This unit features a body size of one-half inch and operates as a two-way ball valve with NPT connections. The actuator is electric and uses a proportional control signal. It is suitable for applications requiring quick and reliable response.

• Body Size: 1/2 in
• Flow Coefficient: 8 cv
• Actuation Torque: 30 in-lb

Product Highlights

This assembly includes a stainless steel trim and offers a close-off pressure of 130 PSI. It also features a rotary mechanical movement, making it efficient for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type: Ball Valve Assembly
• Actuator Type: Electric
• Power Input Voltage: 24 VAC / 20-30 VDC
• Close-Off Pressure: 130 PSI
• Control Signal: Proportional (2 to 10 VDC)
• Leads and Connections: 3 ft Plenum
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Ambient Air Temperature for Operation: -30 to 60 °C
• Relative Humidity: 15-95 % non-condensing
