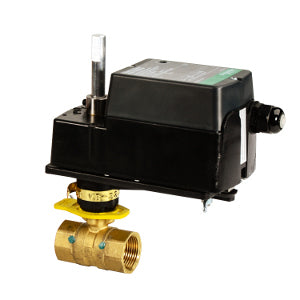

Schneider Electric VS-2253-821-9-25 Ball Valve Assembly 1 in 2-Way NPT

Product Description

The Schneider Electric VS-2253-821-9-25 is a ball valve assembly designed for efficient control of fluid flow. It features a one-inch body size and a two-way configuration utilizing NPT connections. The valve is made with stainless steel material, ensuring durability under various conditions.

• Flow coefficient of 28.4 cv
• Close-off pressure up to 100 PSI
• Operated by a rotary electric actuator

Product Highlights

This valve assembly is suitable for HVAC systems and plumbing applications. It operates with a power input voltage of 24 VAC or 20 to 30 VDC. The actuator ensures precise control with a proportional signal ranging from 2 to 10 VDC. It includes a spring return mechanism that positions the valve normally open in case of power loss.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Body Size: 1 inch
• Configuration: 2-Way
• Type: Ball
• Material Trim: Stainless Steel
• Flow Coefficient: 28.4 cv
• Close-Off Pressure: 100 PSI
• Actuator Type: Electric
• Power Input Voltage: 24 VAC or 20 to 30 VDC
• Torque: 30 in-lb
• Ambient Temperature for Operation: -30 to 60 °C
• Relative Humidity: 15-95 % non-condensing
• Protection Rating: NEMA 2
• Operating Fluid Temperature: -7 to 121 °C
• Electrical Insulation Class: Class II
